Sterilization Processes with Heat Exchanger Plates GC008、GL13、GC16、GX18 for Pharmaceutical Manufacturing

  • 1
  • 2

Brand Name : Victory

Model Number : S1、S4、S4A、S7A、S8、S8A、S9A、S14、S14A、S17、S19A、S20A、S21A S22A、S31A、S22、SW26、S37、SW40A、S41、S41A、S42、S42A、S62、S43 S47、SN51、S52、S64、S65、S81、S100、S121、SF123、SF160

Certification : ISO SGS

Place of Origin : China

MOQ : 10pcs

Price : 50 - 500pieces $18-$27

Payment Terms : T/T, L/C, Western Union,

Supply Ability : 50000pcs per month

Delivery Time : 15-20 days

Packaging Details : Plywood Box

Model : Heat Exchanger Plate

After Warranty Service : Online support

Heat Transfer Area : 10-5000m²

Keyword : heat exchanger plate

Plate Pattern : Chevron

Plate Type : Gasket Plate Heat Exchanger

Plates Material : SUS304 316 316L 310S 904

Surface Treatment : powder coating,Clean,quiet

Veneer Area : customized

Gasket Material : NBR HNBR EPDM HEPDM VITON FKM Silicone/CR/Neoprene

Contact Now

Product Description

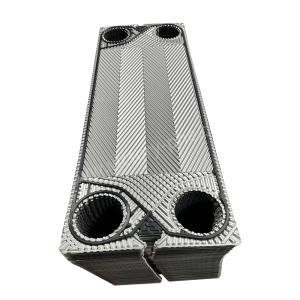

Sterilization Processes with Heat Exchanger Plates GC008,GL13,GC16,GX18 for Pharmaceutical Manufacturing

Heat Exchanger Plates

  • Our Heat Exchanger Plates, which include GC008, GL13, GC16, and GX18, are specifically engineered to meet the stringent requirements of sterilization processes in pharmaceutical manufacturing. These plates are designed to ensure efficient and reliable heat transfer while maintaining the necessary hygienic standards crucial for pharmaceutical production.

    Key Features:

  • High Heat Transfer Efficiency: The heat exchanger plates are optimized for efficient heat transfer, enabling rapid and precise temperature control required for sterilization processes in pharmaceutical manufacturing.

  • Corrosion Resistance: Constructed from materials resistant to corrosion, these plates are built to withstand the harsh chemical environments often present during sterilization processes, ensuring longevity and operational reliability.

  • Sanitary Design: Equipped with sanitary connections and surfaces, the plates adhere to strict hygiene standards, reducing the risk of contamination and maintaining the integrity of pharmaceutical products during sterilization.

  • Customizable Configurations: The GC008, GL13, GC16, and GX18 plates offer a range of configurations to accommodate different heat exchange requirements, providing flexibility for diverse sterilization applications in pharmaceutical manufacturing.

  • Compliance and Certification: Our heat exchanger plates meet industry standards and certifications, ensuring compliance with regulatory requirements and guaranteeing product quality and safety for pharmaceutical manufacturing processes.

Brand Model

GC008,GL13,GC16,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91

GX100,GX140,GX145,GX180,GC16,GC26,GC42,GC51

Material Specification
Stainless Steel

SUS304 316 316L 310S 904
Titanium and titanium-palladium alloy TAi TAi-Pd
Hastelloy

C276 D205 B2G
Nickel Ni200 Ni201
Molybdenum 254

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate material Suitable for fluids
Stainless steel (SUS304.316, etc.) Purified water, river water, edible oil, mineral oil
Titanium and titanium palladium (Ti, Ti-Pd) Sea water, salt water, salt compounds
20Cr,18Ni,6Mo(254SMO) Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution
Nickel (Ni) High temperature, high concentration caustic soda
HASTELLOY alloy (C276, D205, B2G) Concentrated sulfuric acid, hydrochloric acid, phosphoric acid

Plate heat exchanger plate thickness configuration

  • AISI 304 is usually 0.4 or 0.5 mm thickness
  • AISI 316 is always 0.5 and 0.6 mm
  • 254 SMO (high alloy) typically 0.6 mm
  • Titanium plates are always 0.5 and 0.6 mm
  • Some have thicker plates (for high pressure applications)
  • Some PHEs have 0.4 mm (low pressure operation)
  • Hastelloy C-276 (nickel alloy) typically 0.6 mm

Production Process:

  • Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
  • Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
  • Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
  • Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
  • Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.
  • Sterilization Processes with Heat Exchanger Plates GC008、GL13、GC16、GX18 for Pharmaceutical ManufacturingSterilization Processes with Heat Exchanger Plates GC008、GL13、GC16、GX18 for Pharmaceutical Manufacturing
